Glass pH Electrode BNC

Glass pH Electrode BNC

Item code
GPH-BNC



Connect the Glass-Body pH Electrode to our Electrode Amplifier to measure pH in aqueous, heterogeneous, and organic solutions.

$215.00 $236.50

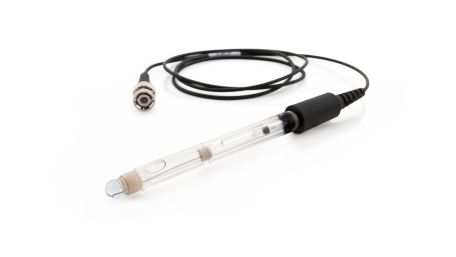

This high-quality glass body pH electrode can be used in non-aqueous solutions and solutions that contain organic solvents, strong acids, or strong bases. The electrode features a sealed, gel-filled Ag-AgCl combination reference electrode and uses a BNC connector. Use with Vernier interfaces requires the Electrode Amplifier. Also compatible with Go Direct® Electrode Amplifier.

  • pH range: 0–14
  • Type: Glass shaft, sealed combination electrode with Ag/AgCl reference
  • Temperature range: 0–80°C (readings not compensated)
  • Accuracy
    • ±0.2 pH units (factory calibration)
    • ±0.05 pH units (user calibration)
  • Response time:
    • s (to 90% of full reading in aqueous buffer)
    • s (to 90% of full reading in 50% acetonitrile)
  • Shaft diameter: 12 mm OD
  • Shaft material: glass
  • Glass-Body pH Electrode with BNC terminated cable
  • pH storage solution bottle with pH storage solution
  • User manual
