Halls Effect apparatus full kit

Halls Effect apparatus full kit

Item code

Halls Effect measures magnetic field strength in milli-tesla (mT)

$774.00 $851.40
Stock status: PreorderThis item is not in stock but is available to purchase. As soon as the item is in stock, it will be shipped to you. Lead times will vary depending on the item, please contact us on [email protected] for more detailed information.+

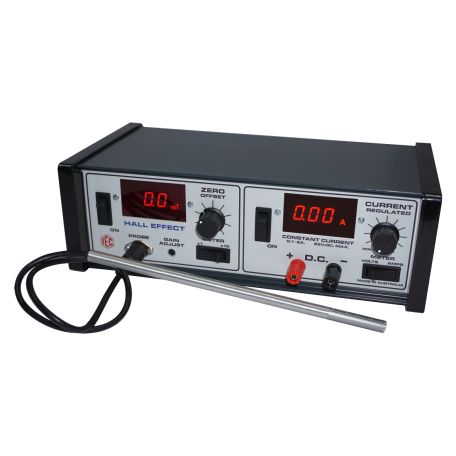

This kit consists of the power unit and the Hall probe. Other equipment required for magnetic experiments include a pair of Helmholtz coils EM1915-001 and an Air Cored Solenoid EM0090-001. The power supply provides a special constant current supply (current remains exact even thought the load might alter resistance due to heating) for the solenoids. The unit also reads in mT (milliTesla) as detected by the Hall Effect probe. Ranges are 0-2 A (const.current with up to 25V.DC.available), and 2x range 0-10mT / 0-100mT. Meter can be switched from output Amps to monitor output Volts if desired.
