Power Supply

Power Supply standard, 2-12V, AC/DC, 5A

Item code

IEC power supply.  A standard in educational settings.   Made in Australia and a best seller!

Special Price $189.00 $207.90 Regular Price $231.00
Stock status: In StockThis item is in stock and available for immediate delivery. If you require this item urgently please indicate so upon checkout.+

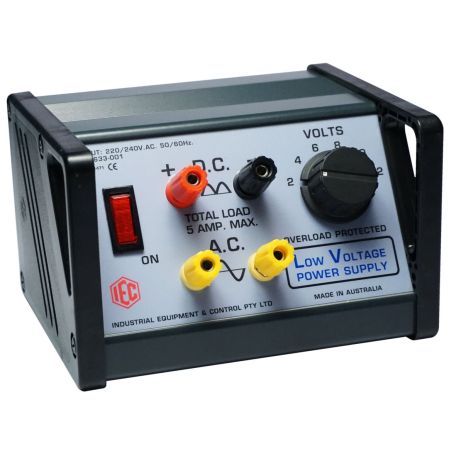

The IEC Power Supply is a compact, general purpose power supply to provide switched AC and DC voltages at 2, 4, 6, 8, 10 and 12V.AC and DC at about 5 to 6A. The DC output is full wave rectified but not filtered.


- Input: 220/240V.AC. 50/60Hz 0.5 Amp Standard removable mains cable.

- On/off: By illuminated mains on/off rocker switch on front panel.

- AC output: Switch selected 2, 4, 6, 8, 10, 12V.AC (nominal) at 6 Amp continuous.

- DC output: Switch selected 2, 4, 6, 8, 10, 12V.DC (nominal) full wave rectified and unfiltered 5 Amps continuous.

If both the AC and DC outputs are used simultaneously, when the total load exceeds about 6 amps, the overload will trip.

Overload and short circuit protection is by an audible, internal, automatically self-resetting thermal overload.  Also see model 2634001 which is fitted with a front panel LED to indicate when the overload has tripped and reset.

Physical size: 160x110x83mm LxWxH.  Weight: 2.3 kg

Made in Australia by IEC.
