Multimeter analogue, 19 ranges.
Item code
QM1020

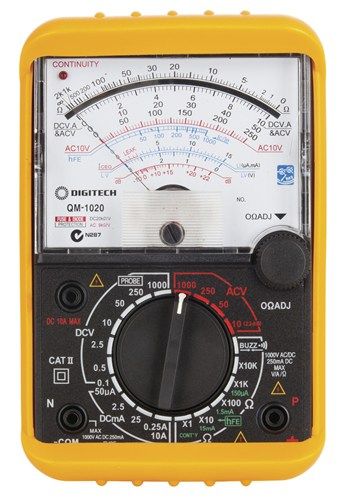

An analogue meter, still the best way to test a capacitor
$45.90
$50.49
Digital multimeters have almost completely taken over, but there are those who prefer to use the old analogue meter - it's still the best way to test a capacitor. This well-made meter has audible continuity and a transistor test, in addition to the normal set of functions.
• Transistor test
• Holster included
• Audible continuity
| Specifications | |
| Display | Analogue |
| Security class | Cat II 1000V |
| Basic DCV accuracy | 3% |
| DC voltage | 100mV, 500mV, 2.5V, 10V, 50V, 250V, 1000V (+-3%) |
| AC voltage | 10V, 50V, 250V, 1000V (+-4%) |
| DC current | 50µA, 2.5mA, 25mA, 250mA (+-3%) |
| AC current | - |
| Resistance | 2k, 20k, 200k, 2M, 20M (+-3%) |
| Capacitance | - |
| Frequency | - |
| Inductance | - |
| Temperature | - |
| Ave/RMS | AVE |
| Input impedance | 10M |
| Special features | hFE, dB, continuity buzzer |
| Dimensions | 150(L) x 100(W) x 35(D)mm |
