Go Direct Dynamics System

Go Direct Dynamics System

Item code
VERDC004



This completely wireless system simplifies experiment setup and allows basic experiments to be conducted with or without the track.

$1,673.00 $1,840.30
Note: This is an oversized item and will incur additional shipping charges.

The Dynamics Cart and Track System with Go Direct Sensor Carts includes essential laboratory equipment for teaching dynamics and kinematics. Using the Go Direct Sensor Cart, students can explore force, position, velocity, and acceleration directly on their Bluetooth enabled device. No wires or additional equipment required.

Each cart features built-in sensors to simplify experiment setup and allow experiments to be conducted on or off the track



Rechargeable Battery—Ready When You Are

The robust rechargeable battery offers long battery life and provides always-ready operation when using the sensor wirelessly. Monitor battery life directly from the award-winning Vernier Graphical Analysis® app, as well as LabQuest® 3. Should the battery run low, simply connect the sensor to the charging cable and keep on collecting—no interruptions or inconvenience to you or your students.

Wireless or Wired—The Flexibility to Choose

The Go Direct sensors connect directly to your mobile device, Chromebook, or computer using the Vernier Graphical Analysis® app—no additional equipment or software purchases are necessary. Go Direct sensors can be used wired via USB or wirelessly via Bluetooth® wireless technology, allowing you to choose the best solution for your classroom or laboratory.



Accessories and Replacement Parts Available by request.



Warranty

5-year limited warranty (1 year on battery)

  • Position resolution: 0.25 mm, reported by default at 1 mm steps
  • Force range: ±50 N
  • Accelerometer range: ±160 m/s2
  • Track length: 1.2 m

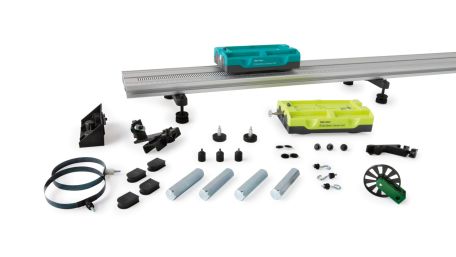

Dynamics Cart and Track System with Go Direct® Sensor Carts

  • 1x Go Direct Sensor Cart (green)
  • 1x Go Direct Sensor Cart (yellow)
  • 1x Combination 1.2 M Track/Optics Bench
  • 1x Adjustable End Stop
  • 1x Adjustable Two Foot Leveler
  • 1x Ultra Pulley
  • 1x Pulley Bracket
  • 1x Rod Clamp
  • 1x Magnetic and hook-and-pile tabs
  • 1x Go Direct Sensor Cart Accessory Kit:
    • 1x Heavy hoop spring bumper
    • 1x Light hoop spring bumper
    • 4x Masses
    • 2x Magnetic bumper
    • 3x Force sensor hook
    • 3x Rubber bumper
    • 3x Anti-Roll Pegs
