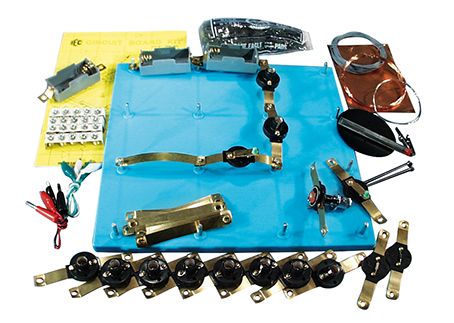

Electricity Value Pack 3 - Worcester Circuit Board, complete kit

Electricity Value Pack 3 - Worcester Circuit Board, complete kit

Item code
ELTR-03

Enables students to investigate nature and properties of electricity by using simple circuits which are easily constructed on a baseboard. The connector system uses P.C.B. strips with cut-out sections whose ends can easily be inserted in spring terminals, ensuring low contact resistance and ease of connection.

$169.90 $186.89

Enables students to investigate nature and properties of electricity by using simple circuits which are easily constructed on a baseboard. The connector system uses P.C.B. strips with cut-out sections whose ends can easily be inserted in spring terminals, ensuring low contact resistance and ease of connection.

The kit consists of :

  • 1 Baseboard, plastic, with spring terminals and three battery holders
  • 3 Batteries
  • 10 Lamps 1.25 V M.E.S.
  • 6 Lamp holders mounted on P.C.B. connectors
  • 10 Plain connector P.C.Bs
  • 1 Wire wound potentiometer with crocodile clip connections
  • 1 Silicon diode
  • 1 Resistor 3.9 ohm 2.5 W
  • 1 pair Leads, red, with crocodile clip at each end
  • 1 pair Leads, black, with crocodile clip at each end
  • 1 pair Leads, yellow, with crocodile clips at each end
  • 2 Switches mounted on P.C.B. connectors
  • 1 PVC rod 15 cm long
  • 2 Soft iron nails, 5 cm long
  • 2m Bare copper wire, swg 20
  • 2m Bare eureka wire, swg 34
  • 2m Plastic covered copper wire
  • 1 Electrode support
  • 10 Pencil lead electrodes
  • 1 Sheet copper foil, 150 mm square
  • 1 Pack Steel wool
  • 1 Instruction manual in English
