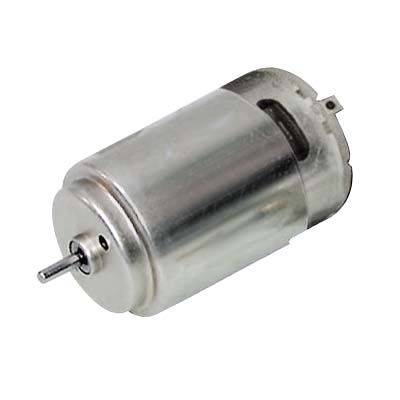

Each motor briefly described below is a quality product with hardened drive shaft, sintered bearings and quality commutator brushes etc. THey are ideal for any application where a compact high torque and reliable motor is required. Each motor is provided with a full data sheet which includes motor speed/torque/current/efficiency curves etc. Generous discounts for quantity purchases.

- Torque 80g-cm
- 2.3mm driveshaft
- M2.6 threaded mounting
- Generously ventilated
- Solder tag terminals

Voltage: 6V

NO LOAD
Speed (RPM): 13500
Current (AMP): 0.5

AT STALL
Torque (G.CM): 191
Current (AMP): 5.25

AT MAX EFFICIENCY
Efficiency(%): 49.6
Power (W): 5.96
Speed (RPM): 9679
Torque (G.CM):60
Current (AMP): 2

AT MAX POWER
Output (W): 6.44
Speed (RPM): 7845
Torque (G.CM): 80
Current (AMP): 2.6
