Digital USB Oscilloscope, 20MHz

Rating:
0%
Item code
P929

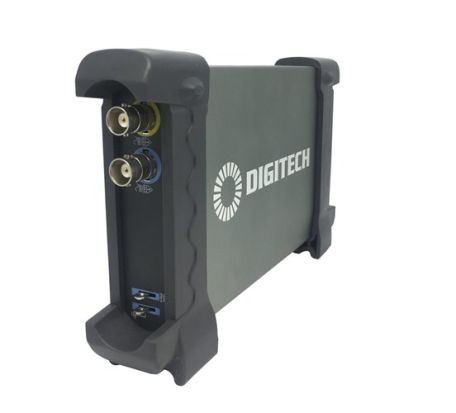

Digital USB Oscilloscope, 20MHz
$218.90 $199.00

This unit does away with more of the hardware and provides a highly accurate interface to allow software to provide the display. It still provides 20MHz bandwidth and high accuracy and physical probe couplings, but takes up a fraction of the bench-space. Use the included software to provide just about all standard oscilloscope functions, and even output waveforms to excel/word files. Convenient function in a small form factor, ideal for the traveling or compact workbench.



  • USB interface plug & play

  • Automatic setup

  • Waveforms can be exported as Excel/Word files

  • Spectrum analyser (FFT)

  • External trigger input

  • Cursor measurements

  • Operating Systems: Windows 2000/XP/Vista/7/8/10


Specifications


Channels : 2.0
Impedence rating : 1.0MΩ
Bandwidth : 20MHz
Sampling Rate : 48MS/s
Input Coupling : DC
Triggers : Rising edge / Falling edge
Trigger Modes : Auto / Normal / Single
Mathematical Operations : Add / subtract / multiply / divide / FFT
DC accuracy : 3.0%
Vertical sensitivity : 10mV/div - 5V/div
Vertical Resolution : 8bit
Width : 206.0mm
Height : 37.0mm
Depth : 123.0mm
Weight : 453.0g
